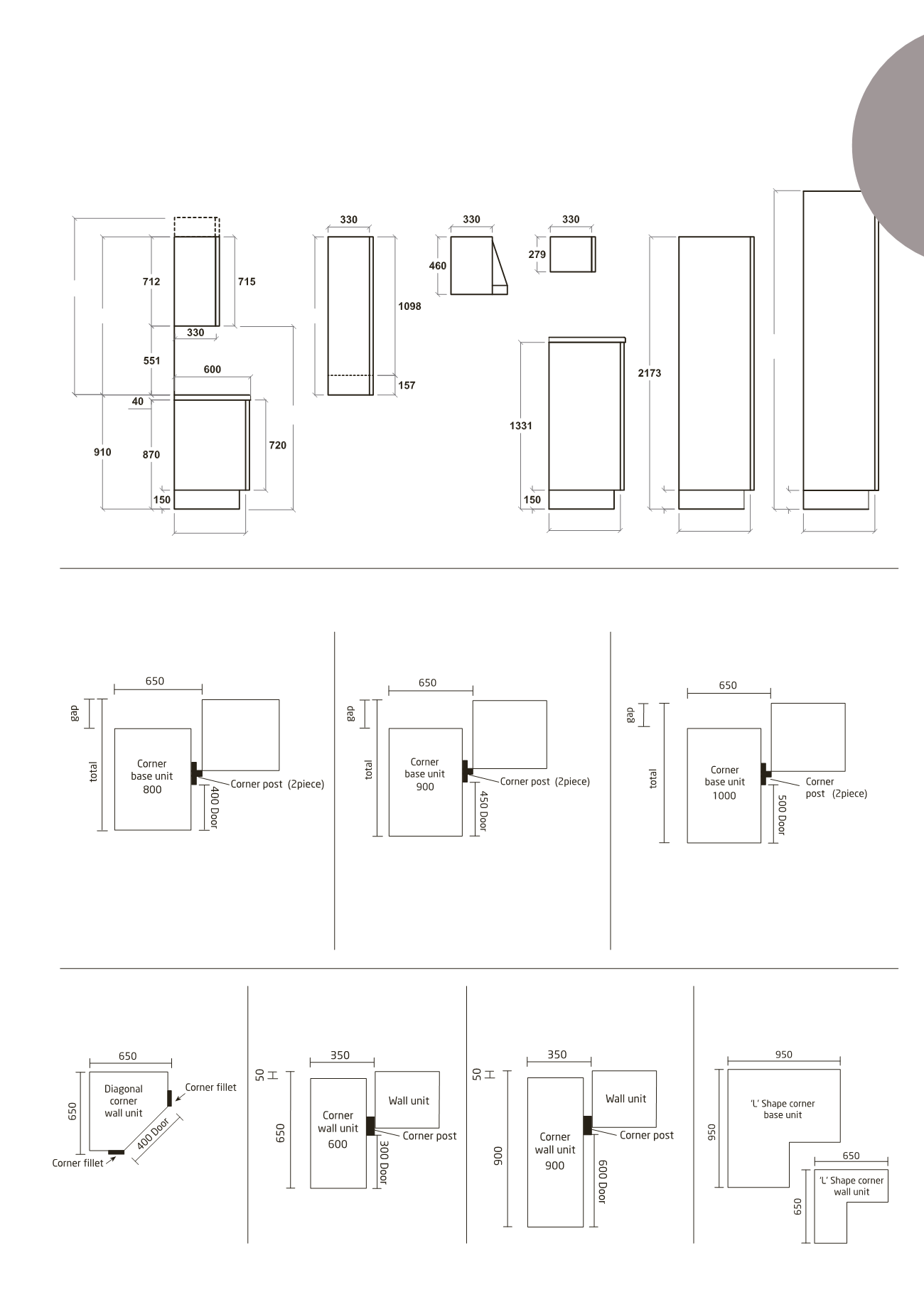

technical specifications
end elevations
all measurements are shown in millimetres and are nominal sizes.
1461
570
570
150
150
2360
std
tall
midi
std
std
tall*
*Tall units & doors in
selected ranges
1450
1263
1263
570
570
Wall Units - Standard
Base Units
Worktop Dresser
Canopy
Bridging Unit
Midi Height Larder /
Appliance Housing
Tall Larder / Appliance
Housing
† Grey cabinet 720mm
†
corner information
800mm Conventional Corner Base
Unit
900mm Conventional Corner Base
Unit
If using alternative door sizes the gap to the
wall changes and centre post of cabinet
would require refixing.
300mm door = 150mm gap (950mm total)
400mm door = 250mm gap (1050mm total)
450mm door = 300mm gap (1100mm total)
If using alternative door sizes the gap to the
wall changes and centre post of cabinet
would require refixing.
400mm door = 150mm gap (1050mm total)
450mm door = 200mm gap (1100mm total)
1000mm Conventional Corner
Base Unit
If using alternative door sizes the gap to the
wall changes and centre post of cabinet
would require refixing.
500mm door = 150mm gap (1150mm total)
600mm door = 250mm gap (1250mm total)
600mm
Conventional
Corner Wall Unit
‘L’ Shape Corner Units
Note:- Walls must be square
to accommodate L shaped
units.
650mm Diagonal
Wall Unit
900mm
Conventional
Corner Wall Unit
107
technical specs
